PA/GA System
  • The Public Address (PA) & General Alarm (GA) syste
  • Talk Back Paging System
The Public Address (PA) & General Alarm (GA) syste

The Public Address (PA) and General Alarm (GA) system is a SOLAS compliant, essential system that ensures safety of life at sea.

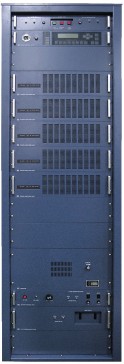

MPA-9000 Series PA/GA System
  • The Public Address System (PA) and General Alarm System (GA) are very important in ensuring the safety of facilities and human life.

  • The system accurately and seamlessly addresses emergency situations and integrates with a variety of alarm systems.

  • Integrated with various other alarm systems, the MPA-9000 Series PA/GA is able to address emergency situations accurately and seamlessly.

REGULATIONS :

ⓐ International Electro-Technical Commission (IEC)

ⓒ Nautical Safety (Rules for the Classification of Ships, DNV)ⓐ International Electro-Technical Commission (IEC)

ⓑ International MaritimeOrganization (IMO) SOLAS

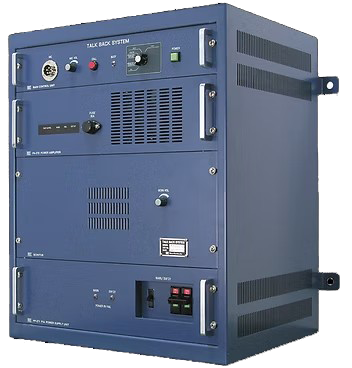

Talk Back Paging System

Talk Back System enables free broadcasting and telecommunication in a particular area such as deck and machinery areas in the offshore

MTB-1200
  • All substations can be connected to the PAGA and the PABX system as well

  • This system has the function for both call in all and call in group and of the automatic switch of power for the main and the emergency situations

  • This system has the function for both call in all and call in group and of the automatic switching of power between main and emergency supplies.

  • This system was tested at the IEC60945 standard and approved for CE by DNV GL .

  • The Type Approval was done by RMRS.

测试11 :

ⓐ IEC 60079-0 (Explosive atmospheres 0 : Equipment general requirements)

ⓑ IEC 60079-1 (Explosive atmospheres 1 : Equipment protection by flameproof enclosures

ⓒ IEC 60945 (Maritime navigation and radio communication equipment

ⓓ Quality Management System, Certified by DN


Talk Back Paging System
  • Auto Exchanger and IP PBX System
  • Common Battery Telephone System
  • Sound Powered Telephone System
Auto Exchanger and IP PBX System

The auto telephone system is an IP-based telephone switchboard which connects not only traditional marine telecommunication equipment, including Inmarsat-F or VSAT, but also internet protocols and network communication

  • MED-100
  • MED-200
  • MED-5000
  • It operates as with the interface between the central exchange unit, which is a micro-computer controlled system, and telecommunication equipment

  • Particularly, the system is suited to connecting not only to the telecommunication equipment such as Inmarsat-F, VSAT, Mini-M, and VSM but also to the Internet protocols and network communications​

  • This system contains a minimum of 24 extension lines up to 500 and the lines can be installed by 8 or 16 units. As for the type of telephone, flush, wall, portable, waterproof, explosion-proof, and intrinsically safe (Used for normal condition or in the area with the possibility of explosive gas in case of accident) types are available, which can be interfaced to Horn/Bell/Flashing Light

Integrated Communication System ::

1. PABX system : Analog, IP, Wi-Fi Phone using gateway
2. PA/GA system : Single or duplicated applications
3. Communal aerial system : IP-TV, CCTV, TVRO, DVD & etc
4. Master clock system : Slave clock interfaced with GPS

Common Battery Telephone System

Common Battery Telephone system is used for communicating with the wheel house, the engine control room, and the steering gear room in case of emergency and for communicating between the areas or rooms when necessary

  • LCA-100
  • LC-600
  • It operates as with the interface between the central exchange unit, which is a micro-computer controlled system, and telecommunication equipment

  • Particularly, the system is suited to connecting not only to the telecommunication equipment such as Inmarsat-F, VSAT, Mini-M, and VSM but also to the Internet protocols and network communications​

  • This system contains a minimum of 24 extension lines up to 500 and the lines can be installed by 8 or 16 units. As for the type of telephone, flush, wall, portable, waterproof, explosion-proof, and intrinsically safe (Used for normal condition or in the area with the possibility of explosive gas in case of accident) types are available, which can be interfaced to Horn/Bell/Flashing Light

OPERATIONS AND SPECIFICATIONS:

Telephone Sets : The common battery telephone consists of the direct and mutual selection types, and is divided into the following categories according to the purpose.

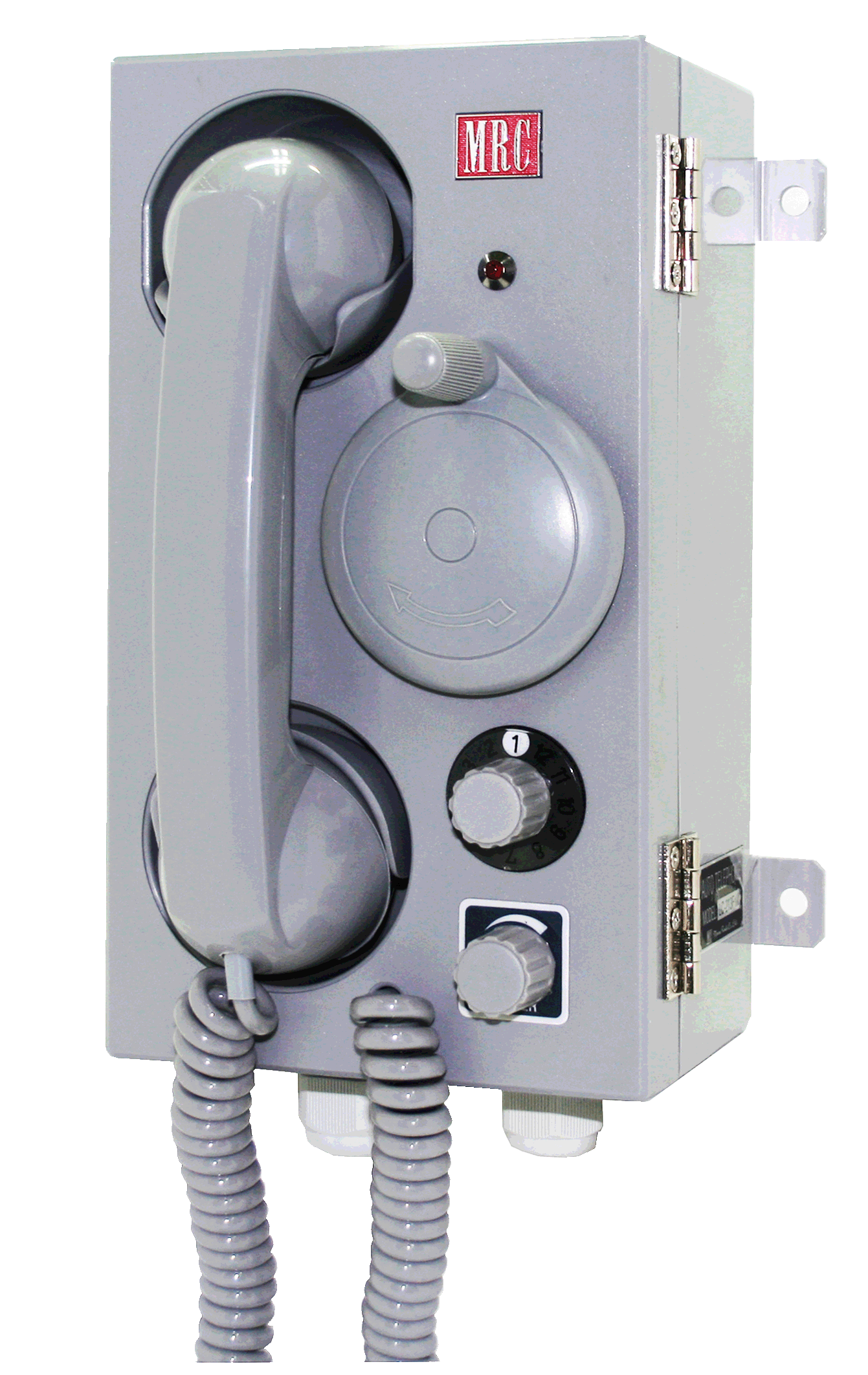

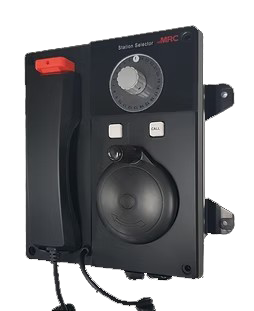

Sound Powered Telephone System

Sound Powered Telephone system is used for communicating with the wheel house, the engine control room, and the steering gear room in case of emergency and for communicating between the areas or rooms when necessary

  • LSA-100
  • LC-800
  • Especially, being independent from the power supply of the vessel, this system allows for emergency communication at critical spots in the vessel even in case of power failure. It is manufactured to be a waterproof and dustproof and adopts the input power supply of 24V DC to deliver communications and signals (Bell, Lamp, Etc.)

  • This system includes the following types: Flush, wall, waterproof, portable, and intrinsically safe (Used for normal condition or in the area with the possibility of explosive gas in case of accident) types, all of which can be interfaced to the Horn/Bell/Flashing Light, and the Foot Switch.

PRODUCT INFORMATION:

Telephone Sets : The Sound powered(batteryless) telephone consists of the direct and mutual selection types, and is divided into the following categories according to the purpose.

Entertainment
  • Communal Aerial System
  • Satellite TV Receiver System
  • Infotainment and IPTV System

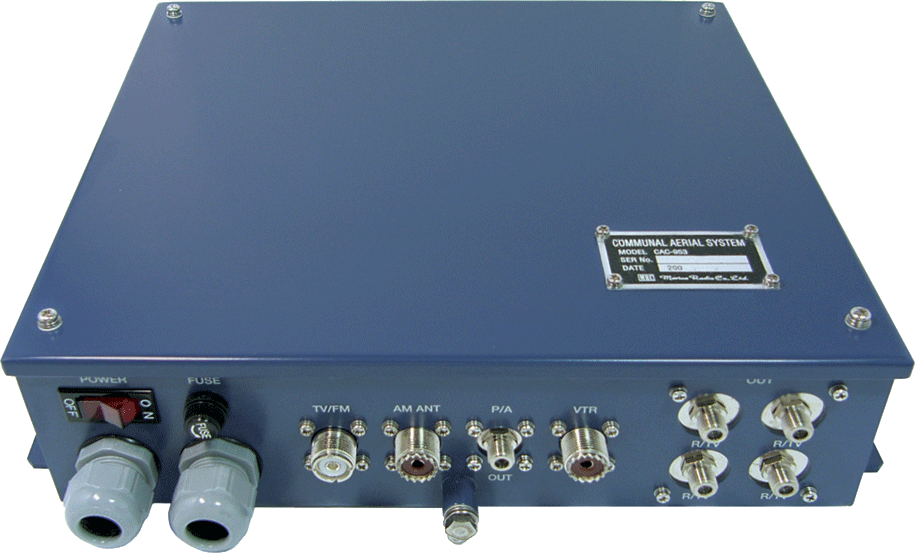

Communal Aerial System

maritime antenna specifically designed for the vessels, and that receives, amplifies, and distributes all types of broadcasting bandwidth including MF/HF/SW and FM for radio, VHF(H/L), and UHF for television, as well as the video from VCR and DVD.

  • CAC-935
  • MAD-100
  • Especially, the Omni-directional antenna is able to stably receive television and radio signals via the whip antenna during the operation of the ship.

  • To avoid the attenuation of weak signals, the system adopts the Automatic Gain Control (AGC) in the built-in broadband amplifier. This system also boasts solid production so that it does not require any maintenance after installation. As long as the power is on in the system, all functions operate automatically

Satellite TV Receiver System

T40/60/80/100/120/240/300 TV maritime satellte antenna

  • T240
  • T120
  • The T-Series TVRO is a popular maritime satellite television system, made for high performance and superior quality by Marine Radio Co., Ltd. It has a dish from 40cm to 300cm, which is perfect for vessels yet still maintains a wide coverage range.

  • The ADE has a 3-axis stabilization system with enhanced reception which many others cannot rival. It has a strong frame antenna and built-in GPS for fast satellite acquisition and higher performance to stay locked on, which helps the mariners to receive analogue, digital, and HDTV signals while the vessel is cruising in rough sea conditions.

  • In addition to wide coverage range and built-in GPS for fast satellite acquisition, it also includes DVB-S2 (Digital video broadcasting) signal identification, and MRC's proprietary antenna control and fast-track signal lock software, plus high-performance stabilization which can track satellites even in inclement weather.

  • Also the system will support multiple receivers and its programs have worldwide coverage.

Infotainment and IPTV System

Digital Network Solution

(IP/Wi-Fi & soft phone, CCTV, IPTV, PC & wireless network and servers)


  • This infotainment system contains a media encoder, video server and set top box.

  • Through that, it can distribute IPTV, internet radio as well as any other video data (multimedia) source through the network to provide entertainment on board.

IT / IP Solution & Clock System
  • Ship Network System
  • Marine Clock System
Ship Network System

LAN (Local Area Network) and Server System


  • The local area network in the system is an advanced Layer 2/3 network with a large number of features.

  • PoE function on all ports is the standard feature :
    i.e. an IP telephone does not need a separate power supply, which makes it easier and cheaper to install.

Marine Clock System

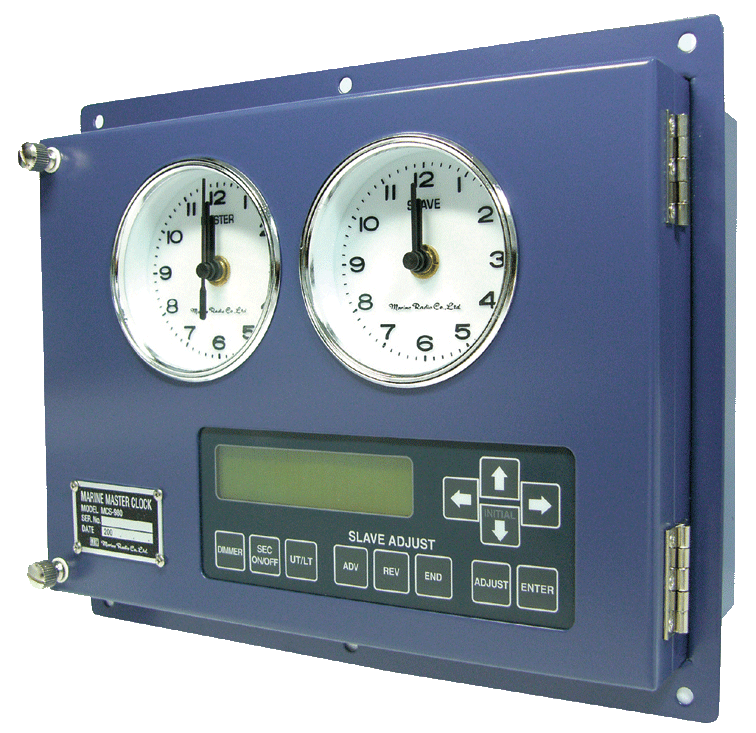

  • MCD-100 Clock System

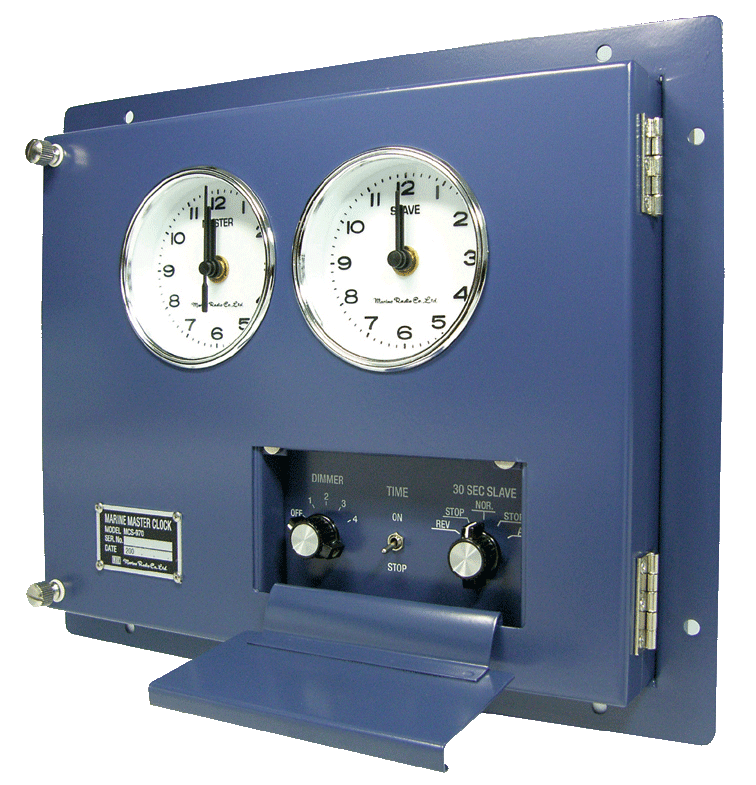

  • MCS-970 Clock System
  • Master Clock System is a device for indicating precise time and date to the analogue/digital slave clocks as well as recording and monitoring the operation data of the vessel.

VSAT Communication
  • T240
  • T120
  • The T-Series TVRO is a popular maritime satellite television system, made for high performance and superior quality by Marine Radio Co., Ltd. It has a dish from 40cm to 300cm, which is perfect for vessels yet still maintains a wide coverage range.

  • The ADE has a 3-axis stabilization system with enhanced reception which many others cannot rival. It has a strong frame antenna and built-in GPS for fast satellite acquisition and higher performance to stay locked on, which helps the mariners to receive analogue, digital, and HDTV signals while the vessel is cruising in rough sea conditions.

  • In addition to wide coverage range and built-in GPS for fast satellite acquisition, it also includes DVB-S2 (Digital video broadcasting) signal identification, and MRC's proprietary antenna control and fast-track signal lock software, plus high-performance stabilization which can track satellites even in inclement weather.

  • Also the system will support multiple receivers and its programs have worldwide coverage.

CCTV System
  • MCT-200
  • MCT-SPZ
  • This product provides a complete visual monitoring solution even when a limited bandwidth and memory space are available by adopting a very efficient method of video compression and minimising transmission load.
