HiBas & HiNas
  • ECDIS
  • RADAR
  • DIP
ECDIS
Electronic Chart Display & Information System

• Enables the navigator to plan the voyage and monitor the route, easier and faster, for safe navigation of the vessel at sea

• Uses various types of data from multiple sources including the GPS and AIS, then displays the images on the electronic navigational chart

• Reads information about specified areas and triggers alerts when the ship enters  a hazardous area where the risk of collision or grounding is higher

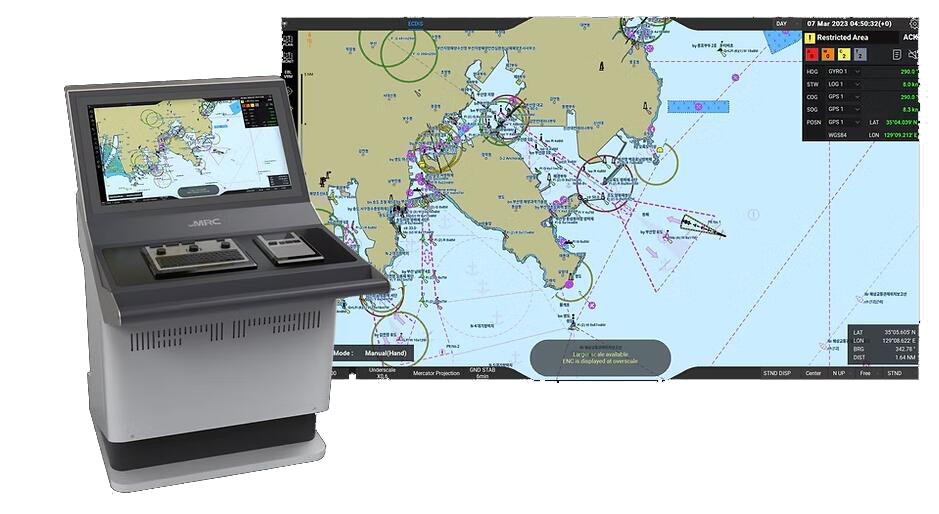

MNS-100E Series at a Glance

The MNS-100E series offers powerful route planning and route monitoring capabilities as well as support for electronic navigation charts.

Improved Situational Awareness

Real-time data on ship position, speed, and course, along with other navigational information, provides a comprehensive view of the ship's surroundings

Accuracy

Provides accurate and reliable navigation information, helping to ensure the safe and efficient passage of the ship

Safety

Provides alerts and warnings if the ship is in danger of grounding or colliding with another vessel, helping to ensure safe navigation

Enhanced Efficiency

Helps the navigators optimize the ship’s route and performance so that time and fuel consumption can be reduced

Compliance

Fully compliant with MED regulations: DNV and the Republic of Korea government certified

Integration

Integrates with other shipboard systems, such as the Automatic Identification System (AIS) and the radar system, to provide a comprehensive view of the status of the ship, route, and the sea

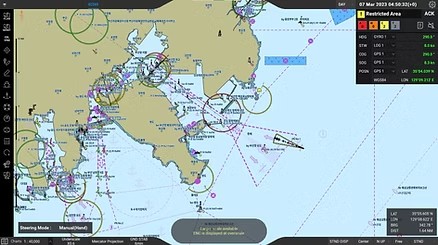

USER INTERFACE
  • The MNS-100E Series provides an intuitive GUI that lets navigators easily utilize the system
  • User interface ensures important data will be displayed in a fixed position on the screen
  • Always displays the menu bar on the left and the critical vessel data on the right
ROUTE PLANNING
  • Integrated route planning and monitoring function which the navigator can use to place waypoints, either graphically on the chart or numerically on the table, and analyze the route
  • Provides waypoint information such as distance between each waypoint on the route, estimated time for the next waypoint, and estimated total voyage time
  • Track Control System (TCS): Automatically controls the ship’s course and provides alerts such as route departure warnings and route interference warnings to avoid collision
DISPLAY
  • Corresponds to electronic navigational charts satisfying IHO S-57, S-63, and S-101
  • 27-inch display providing visibility with wide viewing angles
CERTIFICATES
RADAR
Marine RADAR System

• Enhances situational awareness for safe navigation at sea

• Detects, tracks, and displays objects around the vessel on the screen

• Reads information about specified areas and triggers alerts when the ship enters hazardous areas where the risk of collision or grounding is higher

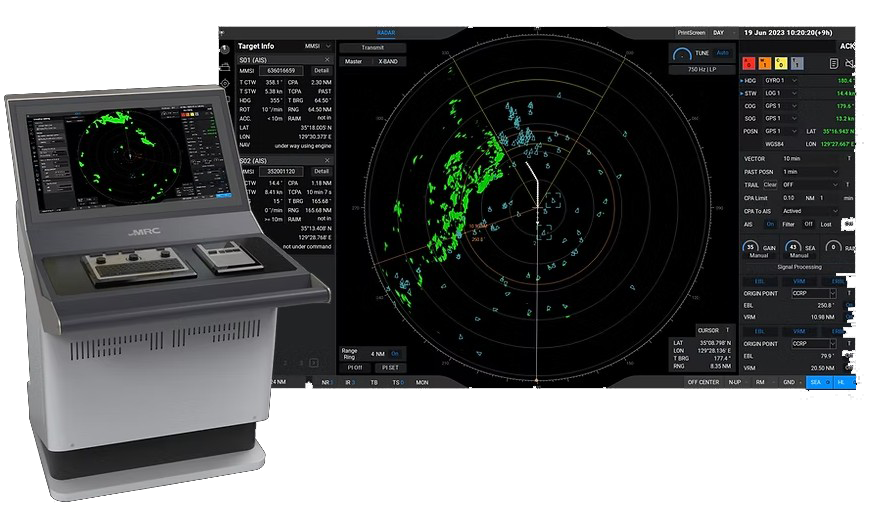

MNS-100R Series at a Glance

The MNS-100R series offers powerful object detection and tracking capabilities

Improved Situational Awareness

Real-time data on ship position, speed, and course, along with other navigational information, provides a comprehensive view of the ship’s surroundings

Accuracy

Provides accurate and reliable object detection, helping to ensure safe navigation even in low visibility conditions

Safety

Provides alerts and warnings if the ship is in danger of grounding or colliding with another vessel, helping to ensure safe navigation

Compliance

Fully compliant with MED regulations, certified by DNV

Integration

Integrates with other shipboard systems, such as the Automatic Identification System (AIS) and the ECDIS system, to provide a comprehensive view of the status of the ship, route, and the sea

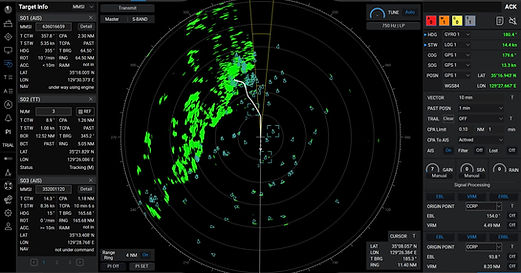

RADAR SYSTEM FEATURE

  • Always displays the menu bar on the left and the critical vessel data on the right

  • Adjustable range scales: 0.125 – 96 NM

  • Manual and automatic tuning and clutter reduction supported

  • 2 Electronic Bearing Lines (EBL), 2 Variable Range Markers (VRM)

  • Target Tracking: Up to 100 targets, Tracking Range 24 NM; 500 AIS targets

  • Manual and automatic target acquisition

  • 27-inch display providing visibility with wide viewing angles

  • The MNS-100R Series provides an intuitive GUI that lets navigators easily utilize the system

  • User interface ensures important data will be displayed in a fixed position on the screen

DETAILED SPECIFICATIONS

X-BandS-Band
Antenna length6ft, 9ft12ft
Frequency

9.4GHz

3.0GHz

Transmission output

12kW, 25kW

30kW

Rotational speed

20rpm

Pulse length (ns)

60, 250, 800

PRF

PRF 3000 (3040, 2900, 3100) / 1500 (1520, 1450, 1550) / 750 (760, 725, 775)

CERTIFICATES
DIP

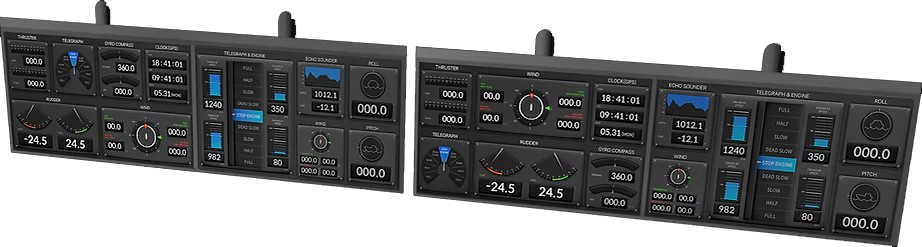

MDI-5000 · 7000 Series DIP

• Provides real-time data and information about the ship’s operation and systems

• Computer-based data acquisition and monitoring system collects and displays the data from the sensors and instruments on the ship

• Provides warnings and alerts if any systems malfunction or require attention

• Intuitively user configurable:

- The display can be configured to match the users’ needs

- The display can dynamically adapt to different situations and change the type of information, which was not possible with analogue instrument panels

• The DIP uses various types of data from multiple sources including but not limited to the gyrocompass, GPS, thruster, and the engines, and displays the images on the overhead display



Real-Time Data

Provides real-time data on the ship's operation and systems, allowing the navigators to monitor and adjust performance as needed

Intuitive Data Visualisation

Collects data from multiple sources, including sensors and instruments, providing a more comprehensive view of the ship's status thatlet the navigators see all the necessary information

User Configurable

User-configurable to match the needs of the navigators and the ship's operations

Safety

Provides alerts and warnings if any systems malfunction or require attention, ensuring safe operation of the ship

Integration

Integrates with other shipboard systems, such as CCTV and RADAR systems (AIS information included), providing a more comprehensive view of the ship


CONFIGURATION PANEL

User Configurable
The user can configure the digital information panel to display the data necessary for the ship’s operations.
The user can also choose the size and location of each instrument on the panel.
  · The 13.3” touch display configuration panel controls both starboard side and port side displays
